Space-Saving Solution for Modern Fire Protection Systems
Overview

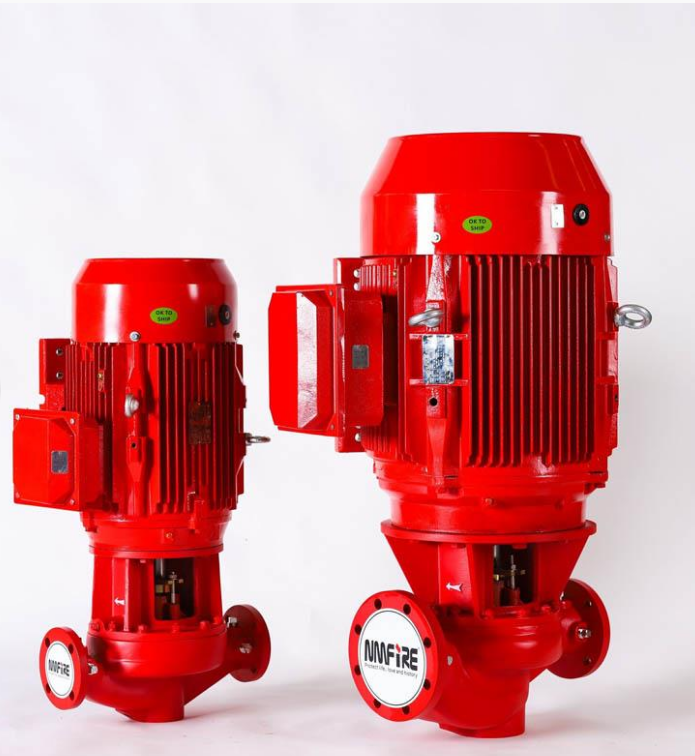

The In-Line Centrifugal Fire Pump is designed with suction and discharge nozzles positioned on the same centerline, allowing direct installation into the pipeline system. This configuration helps save valuable space and optimize overall system layout.
This pump type is commonly used in fire protection systems where pump room space is limited, while still requiring compliance with international standards such as UL/FM and NFPA 20.
Construction Features
Single suction impeller
Vertical in-line design
Motor mounted above the pump
Suction and discharge connections on the same centerline (in-line piping)
Close-coupled connection to electric motor
Key Advantages
Compact design → maximizes pump room space saving
Direct pipe installation → reduces installation cost
No large foundation required compared with horizontal pumps
Low vibration and quiet operation
Relatively easy maintenance
Suitable for retrofit and modernization projects
Applications
High-rise buildings
Hotels and office buildings
Shopping malls
Hospitals and schools
Sprinkler systems, HVAC systems, pressure boosting water supply
Suitable Operating Conditions
Ideal for systems with limited installation space
Suitable for positive suction water sources
Best for medium flow and medium head applications
Not recommended for very high flow duties compared with Split Case pumps
Technical Specifications
Flow Rate: up to approx. 800 m³/h
Head: up to approx. 130 m
Pump Type: Vertical In-Line
Driver: Electric motor
Standards: UL/FM approved, designed in accordance with NFPA 20
Performance Range
Ideal for small to medium-sized fire protection systems, especially projects requiring optimized space utilization and lower installation costs.
